Rubber cable protection | 5 x Ø35mm

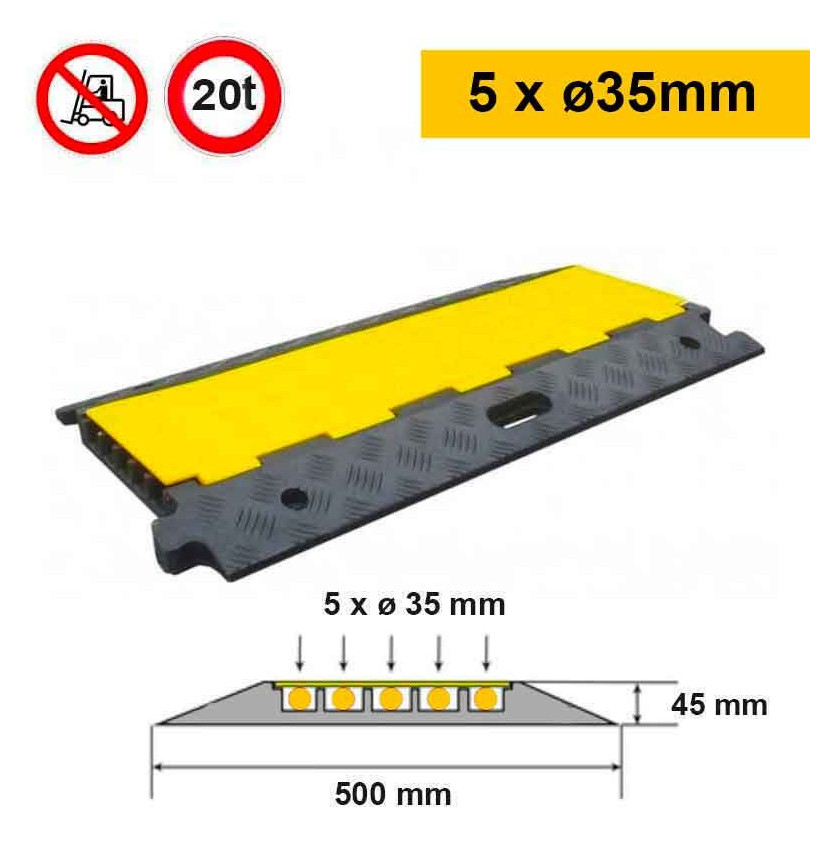

Industrial Rubber Cable Protector with 5 Channels Ø35 mm – 20 Ton Axle Load Capacity

The CP1002 industrial cable protector is a professional solution designed to effectively protect electrical, audio, or network cables in high-traffic environments. Robust and modular, it secures temporary or permanent installations while ensuring safe circulation for both pedestrians and vehicles.

Manufactured from high-density rubber, this cable protector provides excellent resistance to impacts, crushing, and intensive use conditions. With a load capacity of up to 20 tons per axle, it is particularly suitable for logistics areas, large-scale events, construction sites, and industrial facilities.

This model features five channels with a diameter of 35 mm, allowing multiple power cables, audio cables, or data lines to pass through simultaneously. Its top-loading system, with a hinged lid and heavy-duty hinges, allows quick installation and easy access to cables for maintenance operations.

The dovetail interlocking system enables several modules to be connected together, creating a continuous and stable cable protection line over long distances. An integrated carrying handle makes handling and repositioning easier on site.

Optional accessories such as 30° corner pieces and end caps are also available to adapt the installation to specific site layouts and ensure a secure finish at the ends.

Technical specifications

Length: 910 mm

Width: 500 mm

Height: 45 mm

Number of channels: 5

Cable diameter capacity: Ø35 mm

Material: High-density rubber

Loading system: Top loading

Hinges: Heavy-duty reinforced hinges

Carrying handle: Integrated

Connection system: Dovetail interlocking

Load capacity: Up to 20 tons per axle

Compatible accessories: 30° corner sections and end caps (optional)

Applications: Events, construction sites, logistics areas, industrial environments, parking facilities

FAQ – CP1002 cable protector

What is an industrial cable protector used for?

It protects cables laid on the ground from crushing and wear while ensuring safe movement for pedestrians and vehicles.

How many cables can it accommodate?

This model has five channels, each capable of holding a cable with a diameter of up to 35 mm.

Can several modules be connected together?

Yes. The dovetail connection system allows multiple cable protectors to be assembled to cover longer distances.

Can it withstand vehicle traffic?

Yes. It is designed to support loads of up to 20 tons per axle.

Can it be used outdoors?

Yes. The high-density rubber construction is resistant to weather, UV exposure, and temperature variations, making it suitable for both indoor and outdoor use.
