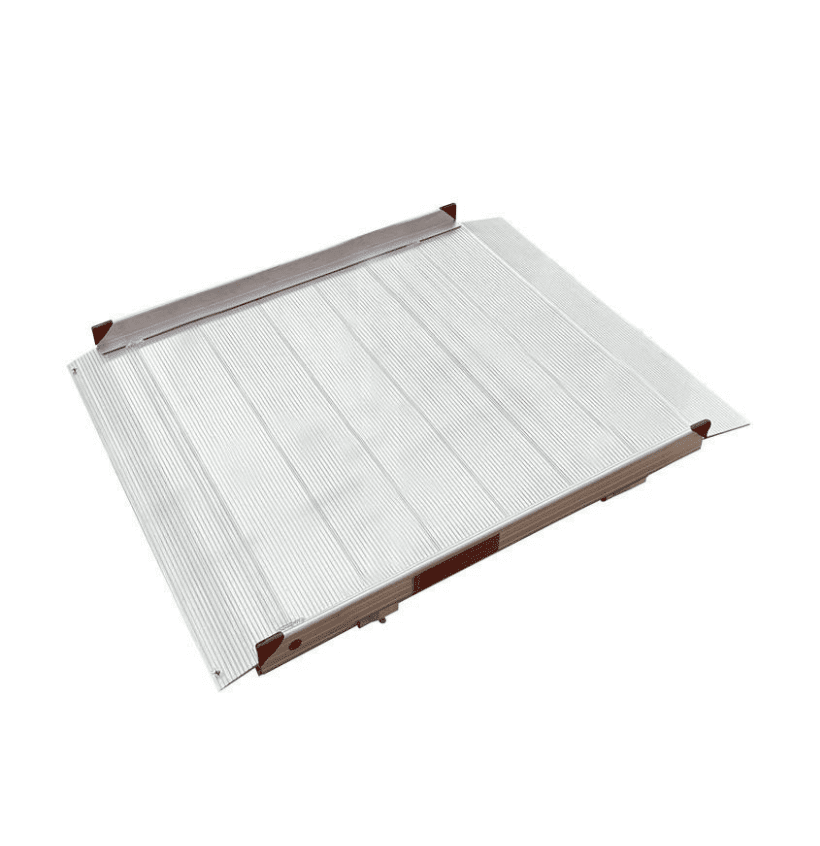

Aluminium Wheelchair Access Ramp with Wheel Guard

Aluminium Wheelchair Access Ramp with Wheel Guard – 380 kg | Foldable | Indoor and Outdoor

Providing safe, easy access for people with reduced mobility at every threshold — that is the purpose of this aluminium wheelchair access ramp with integrated wheel guard. Robust, lightweight and foldable, it installs in seconds with no building work required, whether at the entrance of a public building or for access to an adapted vehicle. Its 380 kg load capacity makes it compatible with all types of manual and electric wheelchairs, mobility scooters and light handling equipment.

High-Resistance Aluminium: Strength Without Compromising Weight

Made from aluminium, this ramp delivers an excellent strength-to-weight ratio. The RAMP122ALU weighs just 14.5 kg at 1,220 mm long, and the RAMP183ALU reaches 21 kg at 1,830 mm — weights that allow easy one-person handling. Aluminium is naturally corrosion-resistant, ensuring optimal durability for outdoor use with no treatment or maintenance required.

Integrated Wheel Guard: Lateral Safety for Independent Users

The integrated lateral wheel guards prevent wheelchair or scooter wheels from drifting sideways during ascent or descent. This is particularly important for independent users who do not always have someone alongside to stabilise their course. Combined with the ramp's non-slip surface, it ensures safe and smooth use in all conditions.

Foldable and Fixable: Versatile Installation

Both models fold for easy transport and storage. The RAMP122ALU features 4 fixing points for semi-permanent installation on hard floors when the ramp is used regularly at the same location. This flexibility makes it easy to switch between temporary use and a semi-permanent setup depending on site requirements.

Two Lengths to Suit Every Threshold Height

• RAMP122ALU — 1,220 mm: maximum height cleared 12 cm at 10% accessibility gradient / 36 cm at 30% loading gradient. Ideal for standard thresholds and kerbs.
• RAMP183ALU — 1,830 mm: maximum height cleared 18 cm at 10% accessibility gradient / 54 cm at 30% loading gradient. Recommended for higher thresholds and adapted vehicle access.

Reference Table and Dimensions

Recommended Applications

• Public building entrances: town halls, schools, public offices, libraries
• Shops, hotels and restaurants requiring rapid accessibility improvement
• Healthcare facilities: hospitals, clinics, care homes, medical practices
• Access to utility vehicles, wheelchair-accessible minibuses and adapted transport vehicles
• Private homes for daily accessibility for people with reduced mobility
• Temporary events requiring quick accessibility provision

What is the Difference Between This Ramp and the RAMP180PMR with Guardrails?

The RAMP122ALU / RAMP183ALU is a compact, lightweight aluminium ramp designed for mobile and versatile use — crossing thresholds, vehicle access, temporary installations. The RAMP180PMR with guardrails is a more complete solution incorporating removable lateral guardrails for users who need walking support, with a greater useful width. The choice depends on the user profile and the level of equipment required.

Frequently Asked Questions

Does the ramp support heavy electric wheelchairs?

Yes. The 380 kg maximum load covers all manual and electric wheelchairs available on the market, as well as the heaviest mobility scooters. The 906 mm useful width is also compatible with the widest wheelchair models.

How is the RAMP122ALU fixed to the floor?

The RAMP122ALU features 4 fixing points for semi-permanent installation on hard surfaces (concrete, tiles, asphalt). For temporary use, the ramp can also be placed freely — its design and weight provide sufficient stability for the vast majority of applications.

What gradient meets accessibility regulations?

UK and European accessibility guidelines recommend a maximum gradient of 1:12 (approximately 8%) for permanent ramps accessible to independent wheelchair users. At 10%, these ramps remain highly accessible and align with standard recommendations for temporary or semi-permanent installations. The 30% gradient is reserved for assisted loading use only, not for independent wheelchair users.

Is the surface non-slip in wet weather?

Yes. The ribbed aluminium surface profile provides effective grip in standard outdoor conditions, including rain. In icy or frosty conditions, it is recommended to apply a compatible de-icing product and check the ramp surface before use.

How do I choose between the 1220 mm and 1830 mm models?

The choice depends on the height of the threshold to be crossed. For thresholds up to 12 cm with a comfortable 10% gradient for independent wheelchair users, the RAMP122ALU is sufficient and more compact for transport. For thresholds up to 18 cm, or to offer a gentler and more comfortable slope, the RAMP183ALU is recommended. As a general rule, a longer ramp always provides greater comfort and safety in use.
