Cable protection roll | ø10/12mm

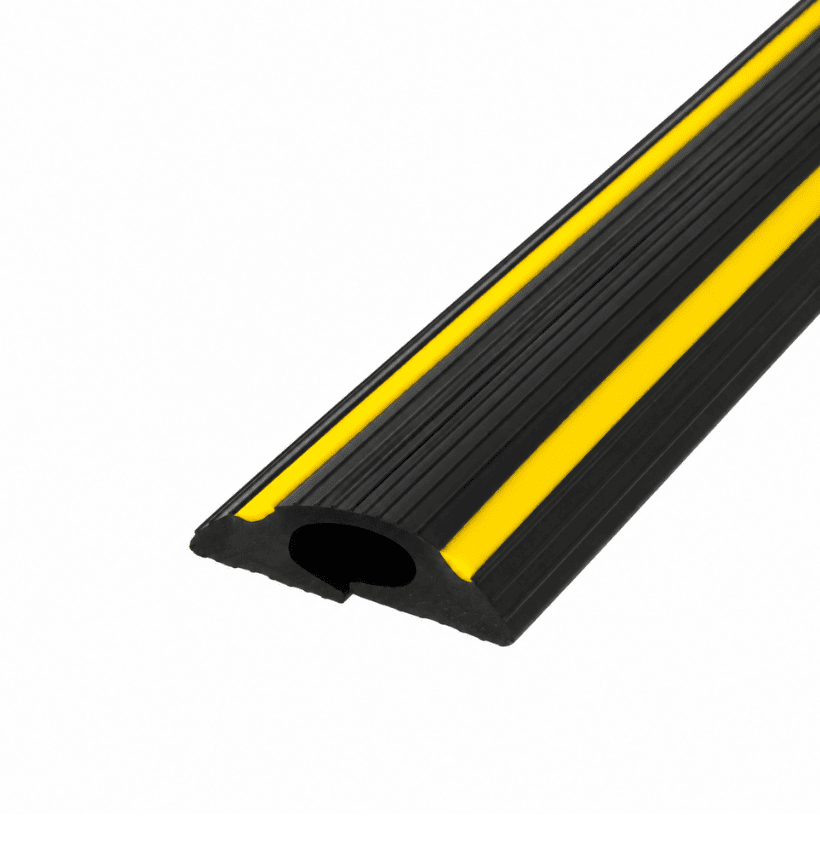

PVC Cable Protector Roll Ø10/12 mm – Flexible, Modular Floor Cable Protection

Laying cables on the floor without exposing them to crushing, snagging or pedestrian trip hazards — that is the purpose of this flexible PVC cable protector roll. Made from flexible PVC with thermoplastic inserts, it provides a lightweight, flexible and easy-to-install solution for protecting small to medium diameter cables in all indoor and outdoor environments. Available in three widths — 50, 70 and 90 mm — it accommodates 1, 2 or 3 cables depending on the installation requirements.

Flexible PVC Profile with Thermoplastic Inserts

The combination of flexible PVC and thermoplastic inserts delivers excellent crush resistance while maintaining the flexibility needed for installation on slightly uneven surfaces. The profile opens easily by hand to insert cables without tools, then snaps back into place to keep the cables protected. Its ribbed underside provides reliable grip on most floor surfaces.

Three Models for 1, 2 or 3 Cables

The range includes three references, each designed to accommodate a different number of cables depending on the installation configuration:

• WP 50: 1 channel Ø10 mm — for single-cable installations
• WP 70: 2 channels Ø10 mm — for dual side-by-side cable installations
• WP 90: 3 channels (Ø10 + Ø12 + Ø10 mm) — for multi-cable configurations with up to 3 simultaneous cables

Each model is supplied as a 3-metre roll, cuttable on site to the exact length required without specialist tools.

Suitable for Indoor and Outdoor Use

The WP 50 is approved for both indoor and outdoor use. The WP 70 and WP 90 models are equally suited to both environments, making them versatile for construction sites, outdoor events, warehouses and offices alike. The PVC resists UV, moisture and temperature variations, ensuring lasting performance regardless of exposure conditions.

Reference Table and Dimensions

Recommended Applications

• Offices and meeting rooms: routing computer or electrical cables across floors
• Events and trade shows: power cable protection on exhibition stands
• Construction sites and work zones: temporary cables crossing pedestrian walkways
• Warehouses and workshops: power cables for mobile machinery or equipment
• Retail and public spaces: anti-trip cable safety management
• Temporary outdoor installations: cabling for stages, podiums and event spaces

Why Choose a Flexible PVC Cable Protector Roll Over a Rigid Model?

Rigid cable protectors are better suited to permanent installations on perfectly flat floors. The flexible roll model offers versatility that rigid versions cannot match: it conforms to slight floor irregularities, cuts easily to the exact required length and can be installed or removed in minutes without tools. It is the ideal solution for temporary installations, frequent reconfigurations or spaces where the floor has slight level variations.

Frequently Asked Questions

Can the roll be cut to the required length?

Yes. The PVC profile cuts easily with heavy-duty scissors or a utility knife, directly on site and without specialist tools. This flexibility allows the protected length to be precisely adapted to each installation configuration, with no unnecessary waste.

How are cables inserted into the protector?

The profile opens by hand thanks to its flexibility: simply spread the top section slightly to slide the cable into the corresponding channel, then release. The thermoplastic inserts hold the cable in place and close the profile without tools or additional fixings.

Does the cable protector grip the floor securely?

The ribbed underside provides natural grip on most smooth surfaces (tiles, concrete, parquet). For installations requiring stronger fixing — particularly outdoors or on high-traffic floors — double-sided adhesive tape can be applied under the profile.

Which reference should I choose based on the number of cables to protect?

The WP 50 is suitable for a single cable up to Ø10 mm. The WP 70 accommodates two Ø10 mm cables simultaneously. The WP 90 is the multi-cable reference with three channels (Ø10 + Ø12 + Ø10 mm), ideal for complex installations requiring multiple cable types under a single protective cover.

Is this cable protector suitable for high-power electrical cables?

This model is designed for small to medium diameter cables (Ø10 to 12 mm), suited to data cables, standard power supply cables or audiovisual cables. For large-section cables or installations subject to heavy loads (HGVs, machinery), heavy-duty cable protectors specifically rated for those applications are recommended.
