Foldable cable protection | ø80/110mm

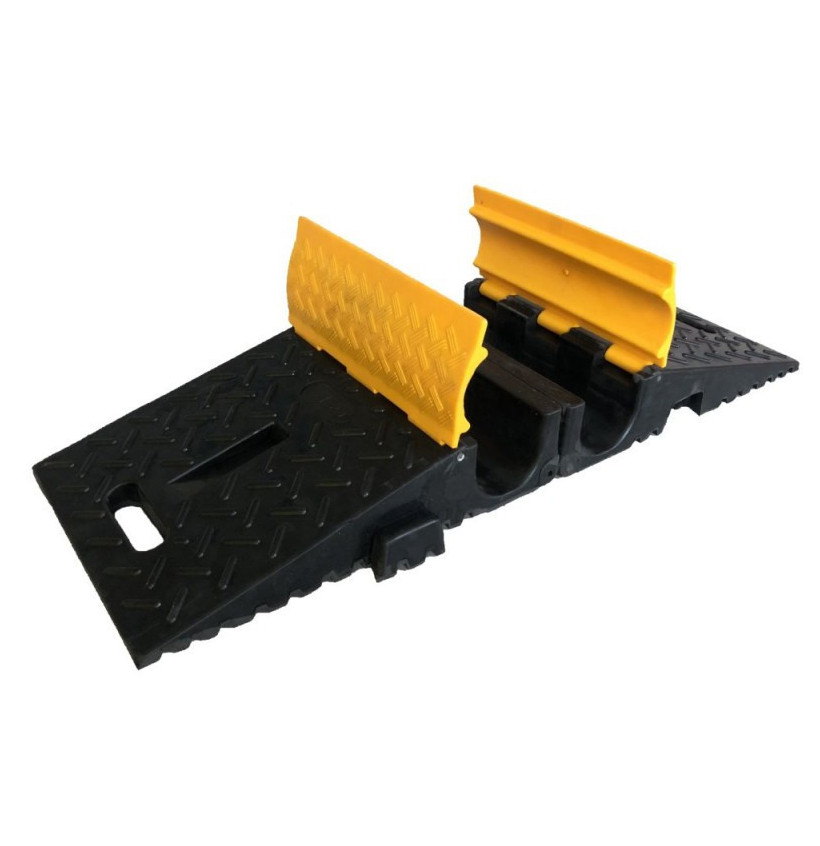

Foldable Rubber Cable Protector with 2 Channels Ø80–110 mm – 40 Ton Load Capacity

The foldable rubber cable protector is designed to protect very large-diameter cables in demanding professional environments with heavy traffic. Thanks to its portable and foldable design, it is particularly practical for temporary installations on construction sites, events, industrial zones, or logistics platforms.

Manufactured from high-density rubber, this cable protector provides excellent resistance to impacts, crushing, and harsh weather conditions. With a load capacity of up to 40 tons, it allows heavy vehicles and handling equipment to pass safely while protecting cables laid on the ground.

This model features two channels capable of accommodating cables with diameters of Ø80 mm or Ø110 mm, making it ideal for high-power electrical cables, large technical conduits, or industrial networks.

The top-loading system is equipped with a reinforced double lid, allowing quick access to the cables when installation or maintenance is required. Heavy-duty hinges ensure long-term durability even with frequent opening and closing.

One of the main advantages of this model is its foldable structure, which simplifies transport and storage. An integrated carrying handle makes it easy to move and position the cable protector quickly without the need for tools.

For stable and continuous installation, the unit includes dovetail interlocking connectors, allowing multiple modules to be linked together to create a long, secure cable crossing.

Technical specifications

Number of channels: 2

Cable diameter capacity: Ø80 mm or Ø110 mm

Width: 300 mm

Depth: 850 mm (folded) / 950 mm (extended)

Height: 90 mm (closed) / 120 mm (with lid open)

Material: High-density rubber

Loading system: Top loading

Lid: Reinforced double lid

Hinges: Heavy-duty reinforced hinges

Carrying handle: Integrated

Connection system: Dovetail interlocking

Load capacity: Up to 40 tons

Applications: Construction sites, festivals, events, industrial zones, logistics platforms

FAQ – Foldable industrial cable protector

Why choose a foldable model?

The foldable design makes transportation and storage easier, making it ideal for temporary or mobile installations.

What type of cables can it protect?

It is designed for very large cables ranging from 80 mm to 110 mm in diameter, commonly used in industrial electrical installations or large-scale events.

Can it support heavy vehicles?

Yes. It can withstand loads of up to 40 tons, allowing trucks and industrial vehicles to pass safely.

Can several cable protectors be connected together?

Yes. The dovetail connection system allows multiple units to be assembled to cover long distances.

Is it suitable for outdoor use?

Yes. The high-density rubber construction is resistant to weather conditions, UV exposure, and intensive use environments.
