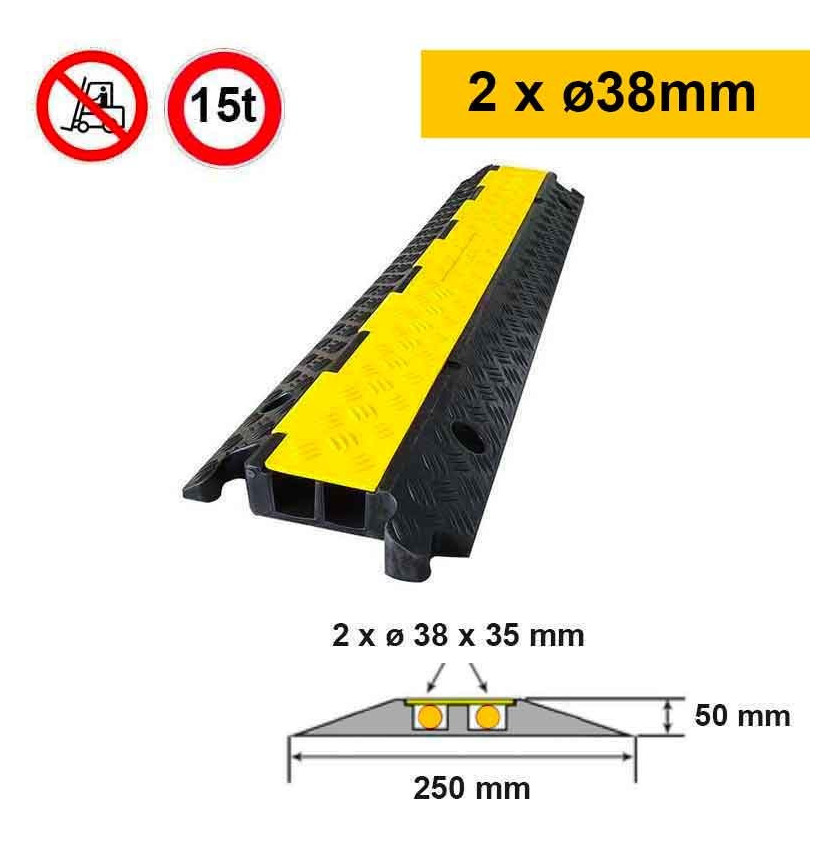

Rubber cable protection | 2 x ø38mm

Industrial Rubber Cable Protector Ø32–38 mm with Top Loading – 15 Ton Axle Load Capacity

The CP1081 industrial rubber cable protector is designed to provide reliable protection for large-diameter cables in demanding professional environments. Robust and durable, it secures temporary or permanent electrical installations while ensuring smooth circulation for both pedestrians and vehicles.

Manufactured from high-density rubber, this cable protector offers excellent resistance to impacts, crushing, and harsh weather conditions. With a load capacity of up to 15 tons per axle, it is particularly suitable for high-traffic environments such as construction sites, logistics platforms, industrial parking areas, and professional events.

Its top-loading design allows for quick installation and easy access to cables during maintenance or when adding new lines. The lid is equipped with heavy-duty hinges, ensuring long-term durability even with frequent opening and closing.

This model features two cable channels capable of accommodating cables with diameters ranging from Ø32 to Ø38 mm, making it ideal for power cables and large technical network lines.

A dovetail interlocking system allows multiple modules to be connected together, creating a continuous and stable cable protection system over long distances. An integrated handle also makes transport and positioning easier during installation.

Additional accessories such as 30° corner pieces and end caps are available to adapt the installation to specific site layouts.

Technical specifications

Length: 1000 mm

Width: 250 mm

Height: 50 mm

Number of channels: 2

Cable diameter capacity: Ø32 to 38 mm

Material: High-density rubber

Loading system: Top loading with reinforced hinges

Connection system: Dovetail interlocking

Handle: Integrated carrying handle

Load capacity: Up to 15 tons per axle

Compatible accessories: 30° corner sections and end caps (optional)

Applications: Construction sites, events, logistics areas, industrial parking facilities

FAQ – CP1081 industrial cable protector

What is an industrial cable protector used for?

It protects cables laid on the ground from crushing and wear while ensuring safe passage for pedestrians and vehicles.

What load can it support?

This model supports up to 15 tons per axle, making it suitable for professional traffic environments.

Can multiple modules be connected together?

Yes. The dovetail interlocking system allows several units to be joined together to cover longer distances.

How are cables installed inside the protector?

The lid opens from the top using reinforced hinges, allowing cables to be placed or removed quickly.

Can it be used outdoors?

Yes. The high-density rubber construction is resistant to weather, UV exposure, and temperature variations, making it suitable for outdoor use.
