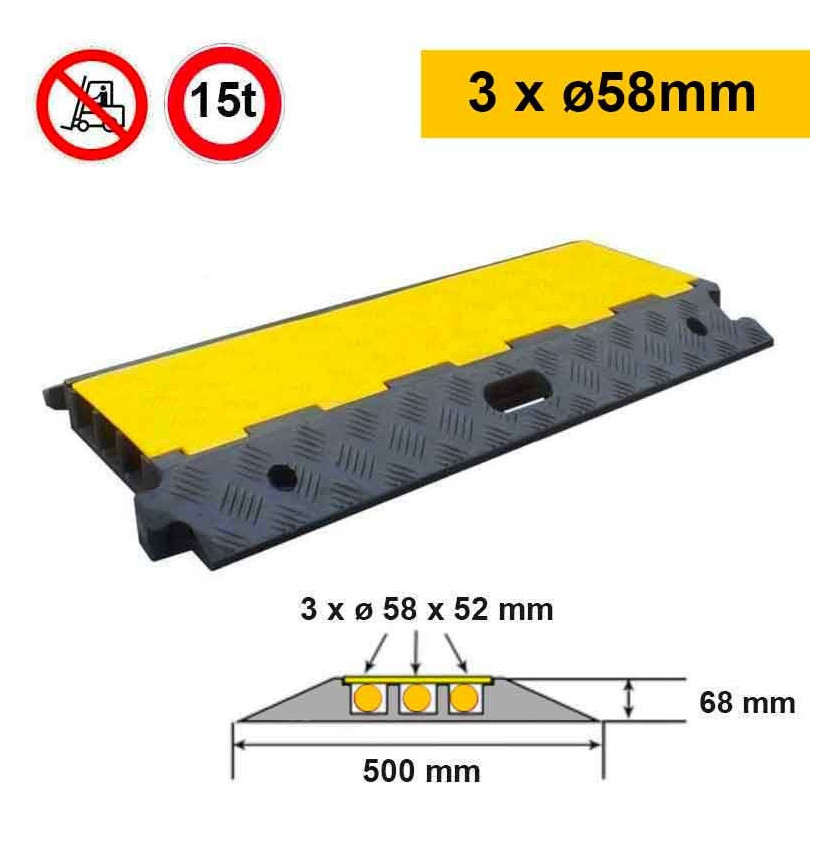

Rubber cable protection | 3 x ø58mm

Industrial Rubber Cable Protector with 3 Channels 58 × 52 mm and Reinforced Lid – 15 Ton Axle Load Capacity

A robust and modular solution for safely routing large-diameter cables

This high-performance rubber cable protector is designed to protect up to three large-diameter cables (58 × 52 mm)in demanding environments such as construction sites, logistics warehouses, professional events, and industrial zones.

Its top-loading system, combined with heavy-duty hinges and a reinforced polypropylene lid, allows quick access to cables while ensuring maximum protection. The dovetail interlocking system guarantees stable and continuous installation, even when several modules are connected over long distances.

With a load capacity of up to 15 tons per axle and an integrated carrying handle, this cable protector combines modularity, strength, and ease of use. Compatible accessories such as 30° corner pieces and end caps are also available to adapt installations to specific site configurations.

Key features of the CP1031 by VISO

High load capacity up to 15 tons per axle, suitable for intensive use

Heavy-duty hinges for increased durability and safety

Dovetail connectors for fast and secure linking of multiple modules

Three extra-wide cable channels 58 × 52 mm, ideal for high-capacity cables

Reinforced polypropylene lid for improved rigidity and longevity

Compatible with 30° corner sections and end caps (optional accessories)

Integrated carrying handle for easy transport and installation on site

Technical specifications – CP1031

Length: 910 mm

Width: 500 mm

Height: 68 mm

Number of channels: 3

Channel dimensions: 58 × 52 mm

Material: Rubber body / reinforced polypropylene lid

Loading system: Top loading

Hinges: Heavy-duty reinforced hinges

Integrated handle: Yes

Connection system: Dovetail interlocking

Load capacity: Up to 15 tons per axle

Available accessories: 30° corner sections and end caps (sold separately)

FAQ – CP1031 3-channel cable protector

Is it suitable for areas with heavy vehicle traffic?

Yes. With a load capacity of 15 tons per axle, it is suitable for utility vehicles, trucks, forklifts, and lifting platforms.

Can several modules be connected together?

Yes. The dovetail connection system allows multiple units to be linked together to create a continuous cable protection line without shifting.

Is the top-loading system easy to use?

Yes. The heavy-duty hinged lid opens quickly, allowing fast cable installation or maintenance.

What makes this model different from standard cable protectors?

This model stands out thanks to:

– Three extra-wide channels (58 × 52 mm)

– Reinforced construction for heavy-duty environments

– Compatibility with corner pieces and end caps

– Higher mechanical resistance suitable for demanding sites.
