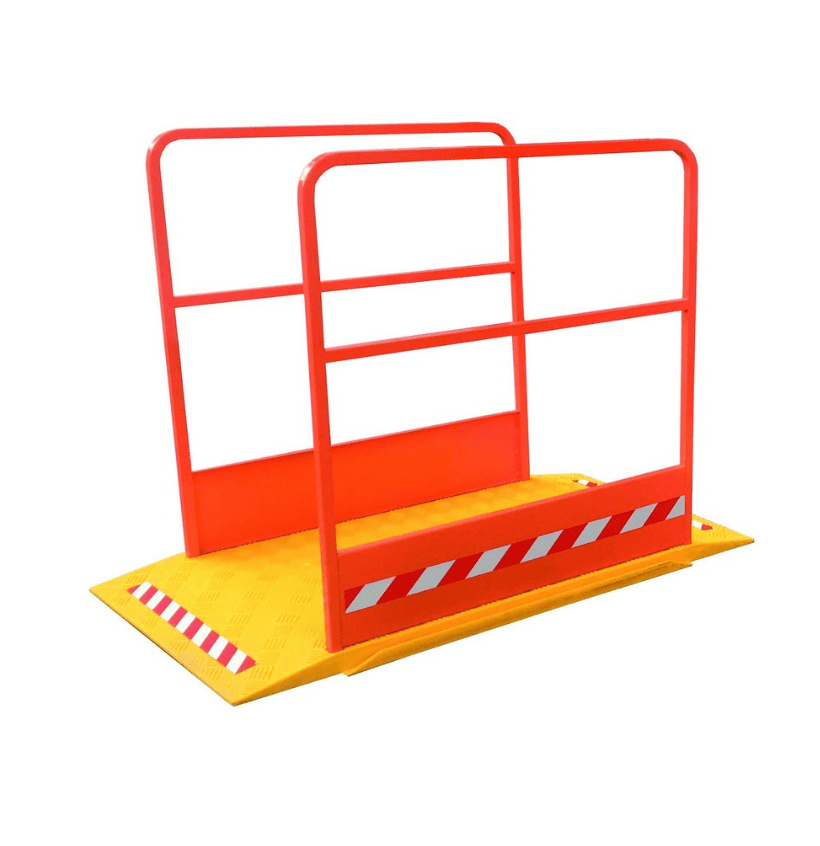

Footbridge 1400mm with Guardrail

Single-Ramp Construction Site Trench Footbridge with Guardrail – Safe Trench Crossing up to 1,000 kg

On a construction site, an open trench presents an immediate hazard for pedestrians, maintenance personnel and light equipment. The IDEQUIP single-ramp trench footbridge with guardrail allows safe crossing of open trenches and pits of any width — from 740 mm to 2,940 mm of useful span depending on the model. Made from reinforced polypropylene and steel, it supports up to 1,000 kg and requires no special tools to install, resting directly on the trench edges.

Polypropylene and Steel Construction for Intensive Use

The footbridge combines a high-resistance polypropylene walking deck — lightweight, non-slip and corrosion-proof — with a robust steel guardrail structure. This material combination delivers sufficient structural rigidity to support loads of up to 1,000 kg, while keeping the footbridge weight manageable for on-site handling and repositioning.

The polypropylene deck provides effective non-slip grip even in wet conditions, reducing the risk of slipping during crossing — a critical point on sites exposed to rain and mud.

1-Metre Guardrail: Full Lateral Protection for Pedestrians

The 1,000 mm high steel guardrail, positioned on both sides of the ramp, provides complete lateral protection for anyone crossing the trench. Its height meets construction site safety requirements for pedestrian footbridges. It can also serve as a support point for operators carrying loads and acts as a clearly identifiable visual and physical barrier across the site.

Four Span Widths for Every Trench Configuration

The PASS range includes four models covering the most common trench widths found on construction sites:

• PASS 800: useful span 740 mm — for narrow trenches and technical pits
• PASS 1600: useful span 1,460 mm — for standard-width trenches
• PASS 2400: useful span 2,200 mm — for wide trenches and large excavations
• PASS 3200: useful span 2,940 mm — for very wide trenches and large-section excavations

All models share the same overall dimensions — length 1,400 mm, width 800 mm, guardrail height 1,000 mm — and the same maximum load of 1,000 kg, ensuring consistent use and installation across the entire site.

Reference Table and Dimensions

Recommended Applications

• Crossing pipe, utility and cable trenches on construction sites
• Safe passage over open pits and excavations in urban work zones
• Secured access to work areas for personnel and pedestrians
• Maintenance of buried networks: water, gas, electricity, telecoms
• Road works and carriageway resurfacing sites
• Industrial zones with maintenance pits or open channels

Why Choose a Footbridge with a Guardrail Rather Than a Plain Board or an Unprotected Bridge?

A board laid across a trench does not constitute approved safety equipment and exposes the employer to liability in the event of an accident. The PASS footbridge with its 1-metre guardrail meets construction site safety requirements for pedestrian footbridges, with a certified 1,000 kg load capacity, a non-slip deck and complete lateral protection. It is the compliant, no-compromise solution for sites subject to safety obligations.

Frequently Asked Questions

Does the footbridge require fixing to the ground?

No. The footbridge rests on the trench edges, with a minimum bearing of 250 mm on each side (B = 250 + 250 mm) and a maximum span between supports of 900 mm (C). No permanent fixing is required — it is placed and repositioned freely as the site progresses. It is recommended to check the strength and levelness of the trench edges at the bearing points before installation.

How do I choose the right PASS reference for my trench width?

The useful span corresponds to the clear width of the trench the footbridge must bridge, taking the bearing supports on each side into account. For a trench 1,200 mm wide, for example, a useful span of at least 1,200 mm is required — the PASS 1600 (useful span 1,460 mm) is suitable. As a general rule, it is recommended to choose the model whose useful span is slightly greater than the actual trench width to allow a safety margin.

Is the non-slip deck effective in wet conditions?

Yes. The ribbed polypropylene deck provides effective grip even in wet conditions. On sites heavily exposed to rain or mud, it is advisable to clean the deck surface regularly to maintain its non-slip properties.

Can several footbridges be placed side by side to widen the crossing?

The useful width of 800 mm is sized for one person with equipment. For a wider crossing or for light machinery, two footbridges can be installed side by side, provided the trench edges offer sufficient bearing and the total load is compatible with both footbridges combined.

Is the steel structure protected against corrosion?

The steel guardrail is treated to withstand outdoor construction site conditions. For long-duration installations in wet or exposed environments, periodic visual inspection of the surface treatment is recommended. The polypropylene deck is naturally corrosion-proof and requires no additional treatment.
