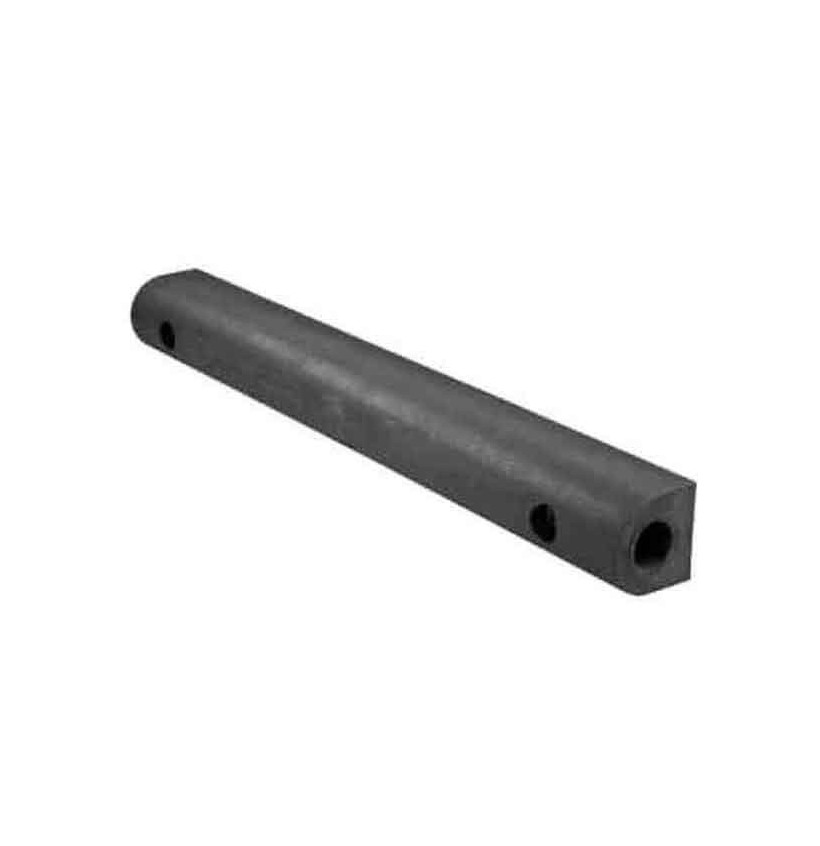

Heavy-Duty Rubber Loading Dock Bumper

1 m heavy-duty rubber dock bumper — Ø50 to Ø200 mm

Need to protect a loading dock, wall or structural element from repeated vehicle impacts — without installing a rigid or complex protection system? This 1-metre heavy-duty rubber dock bumper offers a simple, durable and highly effective solution to absorb impact energy during vehicle approach and safeguard your infrastructure.

It acts as a continuous mechanical buffer, protecting the full usable width of the contact area.

Linear protection across the full impact zone

With its 1000 mm length, this dock bumper covers a wide surface area, significantly reducing off-centre impacts and unprotected sections.

It is particularly useful when:

• Vehicles approach at slight angles

• Different vehicle sizes use the same dock

• Manoeuvring precision is not always optimal

The linear format provides uniform protection rather than a single point of contact.

Four diameters to match your impact requirements

Available in Ø50, Ø100, Ø150 and Ø200 mm, this dock bumper allows you to adjust the level of impact absorption according to operational intensity.

• Ø50 mm: Light-duty protection, small vehicles, low-impact areas

• Ø100 mm: Standard use, vans and rigid trucks

• Ø150 mm: Heavy logistics activity, frequent truck traffic

• Ø200 mm: High-impact zones, semi-trailers and intensively used docks

The larger the diameter, the greater the compression capacity and impact tolerance.

Dense compressible rubber designed to perform under load

Made from high-resistance dense compressible rubber, the bumper absorbs impact energy through controlled deformation and then returns to its original shape.

It is engineered to:

• Withstand repeated compression cycles

• Resist cracking

• Avoid premature hardening

• Maintain performance across a wide temperature range

Suitable for demanding thermal environments

Designed to operate between -40°C and +80°C, this dock bumper is suitable for outdoor installations, cold storage areas, unheated warehouses and sun-exposed environments.

It does not become brittle in freezing conditions and does not excessively soften under high heat.

Simple and secure installation

The bumper is supplied with 3 pre-drilled holes for Ø16 mm bolts (not included), allowing secure fixing to concrete, steel or industrial walls.

Fixings are intentionally left to the installer’s discretion to ensure compatibility with the specific mounting surface.

Technical specifications

• Length: 1000 mm

• Diameters: 50 mm, 100 mm, 150 mm, 200 mm

• Material: High-density compressible rubber

• Temperature range: -40°C to +80°C

• Fixing: 3 holes – Ø16 mm bolts required (not included)

• Use: Indoor and outdoor

FAQ — 1 m rubber dock bumper

Which diameter should I choose for my dock?

For vans and light trucks: Ø100 mm.

For frequent HGV traffic: Ø150 or Ø200 mm.

For low-impact areas: Ø50 mm.

Can it remain installed outdoors year-round?

Yes, the rubber is resistant to temperature variations and suitable for permanent outdoor installation.

Can it be fixed to steel structures?

Yes, it can be mounted on both concrete and steel using appropriate bolts.

Can it be cut to length?

Yes, if necessary — although using the standard length is recommended for continuous protection.

Does it protect against lateral friction?

It helps reduce direct wall contact, but its primary function is absorbing frontal impact energy.
