Modular Industrial Safety Barrier

Modular Industrial Safety Barrier – Custom Protection for Warehouses and Logistics Areas

The modular industrial safety barrier is a complete solution for securing sensitive areas, organizing traffic flow, and protecting equipment in professional environments. It allows you to define walkways, protect machinery, and secure risk zones, while perfectly adapting to your site layout.

Unlike fixed systems, this barrier is fully modular and customizable, offering maximum flexibility to meet real-world constraints.

A 100% modular and scalable system

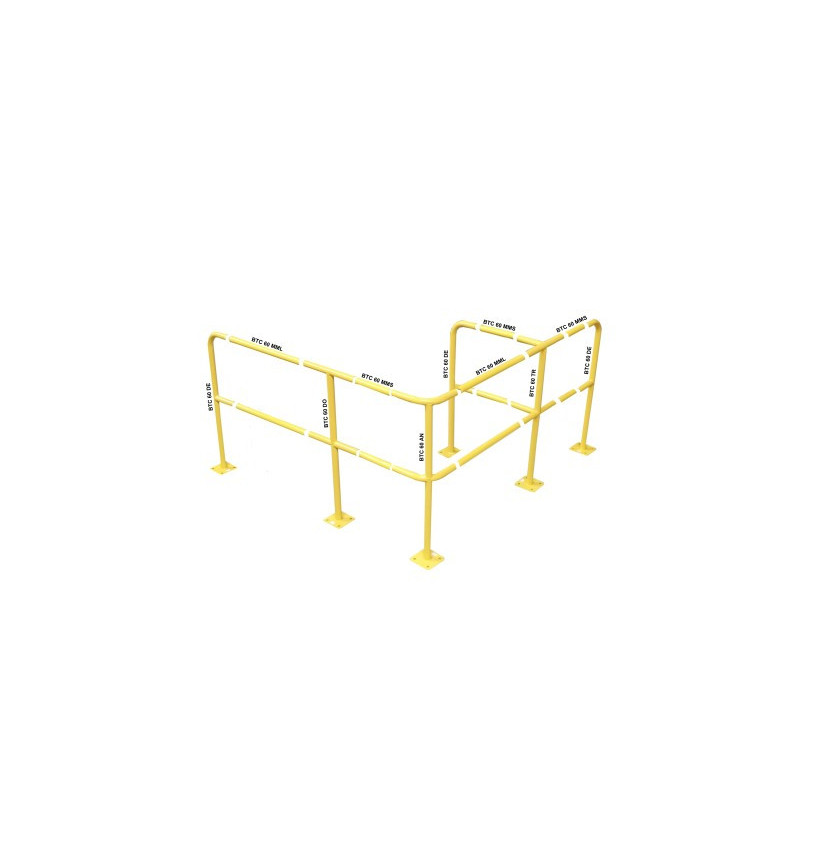

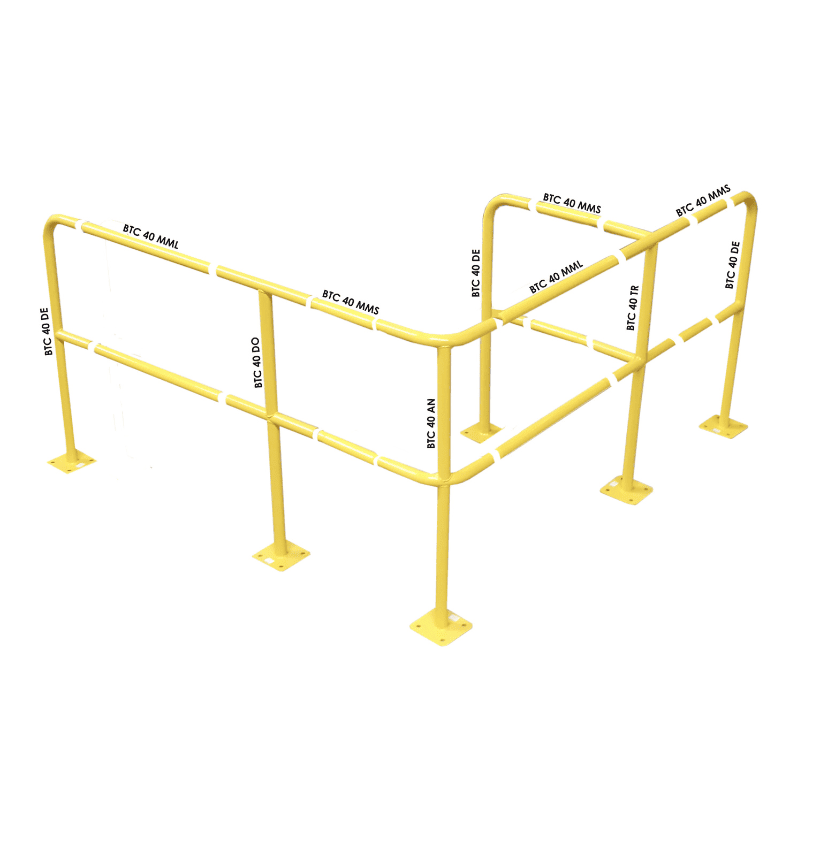

The system is based on a combination of interchangeable posts and rails, allowing you to build custom configurations:

• Start/end posts (extremities)

• 2-way connection posts (straight line)

• 3-way connection posts (corner + extension)

• Corner posts (90°, 120°, 150°)

Rails are easily assembled using a male/female connection system, enabling precise length adjustments and scalable extensions.

Available rail lengths:

• 200 mm

• 600 mm

These can be combined to achieve the exact dimensions required for your installation.

Integrated gates for access control

Two gate options are available to complete your setup:

• Double-swing gate: ideal for high-traffic areas

• Lockable gate (padlock included): perfect for securing restricted zones

These options allow you to control access efficiently while maintaining smooth usability.

Robust design for industrial use

Made from painted steel with phosphating treatment, this barrier offers:

• Excellent corrosion resistance

• High durability in intensive use environments

• A seamless folded structure (no welding), improving impact resistance

Its safety yellow color ensures high visibility and complies with NFX 08-003 standards for safety marking and traffic organization.

⚠️ Note: Not suitable for saline environments.

Quick and easy installation

Installation is designed to be fast and straightforward:

• Rails slot into posts via female ends

• Rails connect together via male/female or male/male systems

Ground fixing is done via base plates (150 × 150 mm) on concrete, using:

• Expansion anchors

• Anchor bolts

• Chemical anchors

• Concrete screws

(Fixings not included)

Technical specifications

Structure:

• Material: painted steel with phosphating

• Manufacturing: folded, no welding

• Color: safety yellow

• Tube diameter: Ø40 mm

Post base plate: 150 × 150 mm

Dimensions and weights

• Male-male rail 200 mm: 300 mm – 0.25 kg

• Male-female rail 200 mm: 250 mm – 0.25 kg

• Male-male rail 600 mm: 700 mm – 0.8 kg

• Male-female rail 600 mm: 650 mm – 0.8 kg

• Start/end post: 200 × 1000 mm – 2.65 kg

• 2-way post: 380 × 1000 mm – 3.21 kg

• 3-way post: 380 × 1000 mm – 3.60 kg

• Corner post (90°/120°/150°): 400 × 1000 mm – 3.12 kg

• Lockable gate: 940 × 1000 mm – 6.70 kg

• Swing gate: 940 × 1000 mm – 6 kg

• Gate stop post: 300 × 1000 mm – 1.80 kg

FAQ – Modular industrial safety barrier

What is this barrier used for?

It secures risk areas, protects equipment, and organizes traffic flow in warehouses and industrial sites.

Can I create a custom configuration?

Yes, the modular system allows fully customized layouts.

How do I choose the rails?

Combine 200 mm and 600 mm rails to achieve the desired total length.

What’s the difference between the gates?

The swing gate is ideal for frequent passage, while the lockable gate provides higher security.

How is it installed?

By assembling the elements and fixing them to the ground using base plates on concrete.

Is it suitable for outdoor use?

Yes, except in saline environments, thanks to its corrosion-resistant treatment.
