Modular Speed Bump 55/75 mm Height

EASYFAST Modular Speed Bump – 25 km/h – 55 or 75 mm – Up to 40 Tons

The EASYFAST modular speed bump is designed to reduce vehicle speeds to around 25 km/h in sensitive areas without blocking traffic or creating excessive discomfort for regular drivers. Manufactured from vulcanized virgin rubber, it provides a durable and reliable solution for controlling traffic on industrial sites, parking areas, private roads, construction zones, and loading docks.

Its modular design allows the speed bump to be adapted precisely to the width of the roadway while maintaining the strength required for heavy traffic.

A profile designed for a target speed of 25 km/h

The geometry of the EASYFAST speed bump is specifically designed to naturally slow vehicles to around 25 km/h, without causing harsh impacts or excessive noise.

Two height options are available:

• 55 mm height for firm but comfortable speed reduction

• 75 mm height for a stronger deterrent where speeding is more frequent

This variation allows the installation to be adapted to actual driving behaviour on the site.

Modular design adaptable to any roadway width

Each module measures 500 mm in length. Multiple modules can be assembled together to cover the exact width of the road, whether it is 2.5 m, 3 m, 3.5 m or more.

The width can be configured according to the site layout, which makes the system particularly suitable for industrial roads and atypical traffic lanes.

If a module becomes damaged, it can be replaced individually, reducing maintenance costs.

Permanent visibility in all conditions

Each module includes two integrated reflectors, which reflect vehicle headlights toward drivers.

Combined with the rubber texture and raised profile, this creates a passive safety signal visible both day and night, even in rainy conditions or poorly lit areas.

Two integrated cable channels for added flexibility

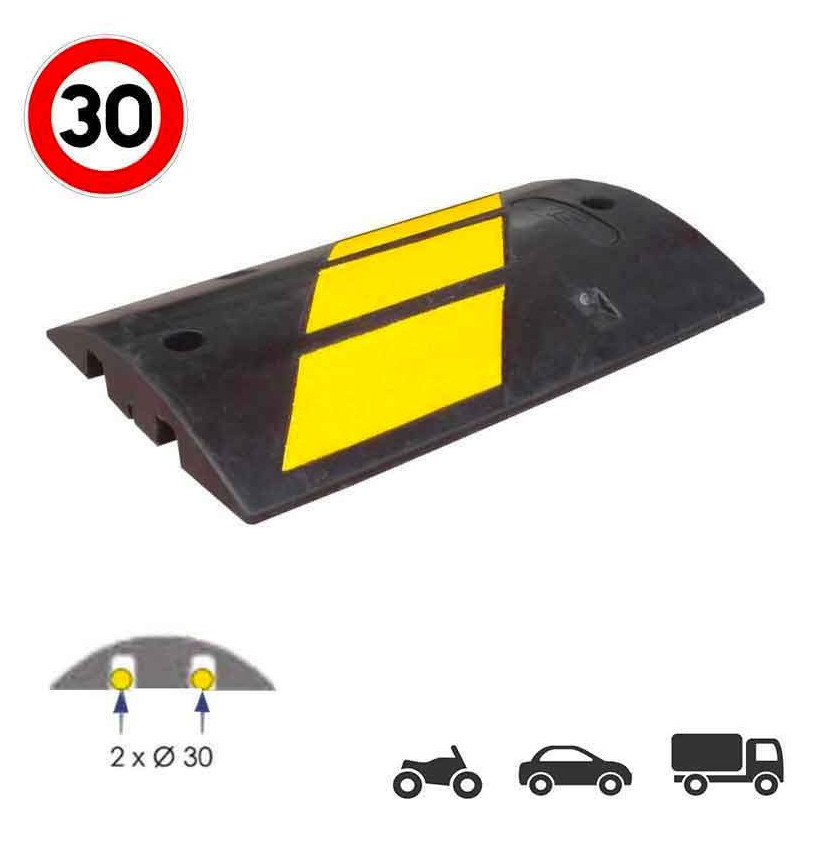

Each module features two Ø30 mm cable channels, allowing cables, hoses, or conduits to pass safely beneath the speed bump without being crushed or exposed.

This is particularly useful in temporary worksites, industrial events, or evolving technical installations.

Strength designed for heavy traffic

With a load capacity of up to 40 tons, the EASYFAST speed bump can withstand the passage of trucks, construction machinery, heavy-duty vehicles, and industrial equipment without deformation.

The vulcanized virgin rubber ensures uniform density, high mechanical stability, and long service life in demanding environments.

Thermal resistance for extreme environments

The EASYFAST speed bump operates in temperatures ranging from -40°C to +60°C, allowing permanent outdoor installation even in cold climates or areas exposed to intense sunlight.

It does not become brittle in winter and does not soften excessively in hot conditions.

Technical specifications

Material: Vulcanized virgin rubber

Height: 55 mm or 75 mm

Module length: 500 mm

Width: Configurable depending on installation

Reflectors: 2 per module

Cable channels: 2 integrated Ø30 mm channels

Load capacity: Up to 40 tons

Operating temperature: -40°C to +60°C

Applications: Industrial areas, parking facilities, private roads, construction sites, loading docks

FAQ – EASYFAST modular speed bump

Which version should I choose: 55 mm or 75 mm?

The 55 mm version provides comfortable speed reduction on structured sites, while the 75 mm version is recommended where speeding is more frequent.

Is it compatible with heavy vehicles?

Yes. With a load capacity of up to 40 tons, it is suitable for trucks and heavy equipment.

Can it be used for temporary installations?

Yes. Its modular design makes it ideal for construction sites or evolving traffic zones.

Do the cable channels effectively protect cables?

Yes. The Ø30 mm channels are integrated into the structure, protecting cables from crushing and vehicle loads.

Is it noisy when vehicles pass over it?

No. The shape and rubber composition are designed to reduce noise while remaining effective at slowing traffic.
