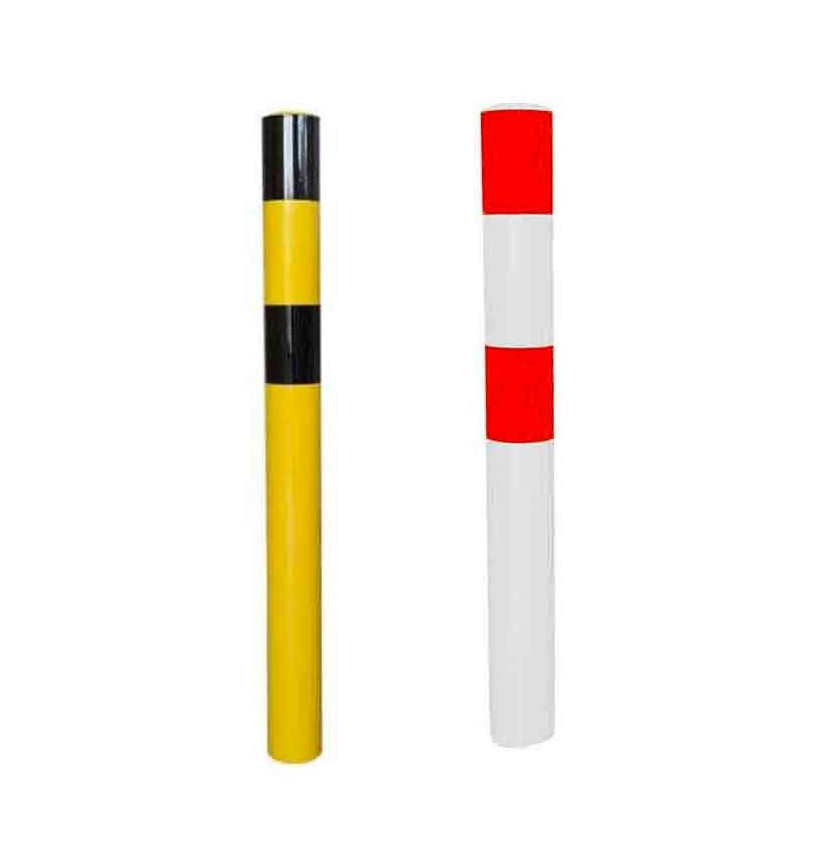

High-Visibility Two-Tone Protection Bollard In-Ground Installation

Viso industrial two-tone protection bollard – Root-fixed – 1000 mm height

The Viso root-fixed steel protection bollard is designed to secure sensitive infrastructures, logistics zones and warehouse surroundings. Built to withstand heavy impacts and intensive industrial use, this high-resistance steel post helps prevent vehicle intrusion, protect buildings from accidental manoeuvres and secure pedestrian pathways.

Unlike base-plated models, this version is embedded directly into concrete, providing a permanent, tamper-resistant installation where maximum strength is required.

Permanent anchoring for maximum resistance

This model is installed by direct embedding into a concrete foundation, ensuring:

• No risk of plate deformation

• No exposed fixing bolts

• Increased impact resistance

• Long-term structural stability

Once sealed into the ground, the bollard becomes a fixed protective barrier integrated into the site infrastructure.

Designed for demanding industrial environments

Manufactured from high-strength steel, the post is suitable for:

• Warehouses and logistics platforms

• Industrial facilities

• Commercial areas

• Urban infrastructure

Its two-tone safety finish improves visibility while maintaining a professional industrial appearance. A galvanised version is available for enhanced corrosion resistance.

Effective perimeter protection

This bollard is ideal for protecting:

• Sectional doors

• Loading dock edges

• Machinery and technical equipment

• Pedestrian walkways

• Restricted vehicle access zones

Its slim cylindrical profile offers a discreet yet highly effective deterrent.

Technical specifications

• Total height: 1000 mm or 1100 mm (depending on model)

• Above-ground height after embedding: 800 mm or 900 mm

• Diameter: 76 mm or 90 mm (depending on version)

• Steel thickness: 2.5 mm

• Unit weight: 4.4 kg or 5.3 kg

• Installation: Direct concrete embedding (no base plate)

• Finish: Raw steel or galvanised (optional)

Key advantages

🛠️ Permanent concrete fixing – no mechanical weak points

🛡️ High impact resistance against forklifts, trucks and vehicles

🔧 One-piece structure – no maintenance required

🚧 Secures sensitive and pedestrian areas

🔩 Clean, professional and deterrent design

Installation guidelines

Installation requires embedding the post into a concrete footing with a minimum anchoring depth of 200 mm. Once cured, the bollard becomes a permanent safety feature.
