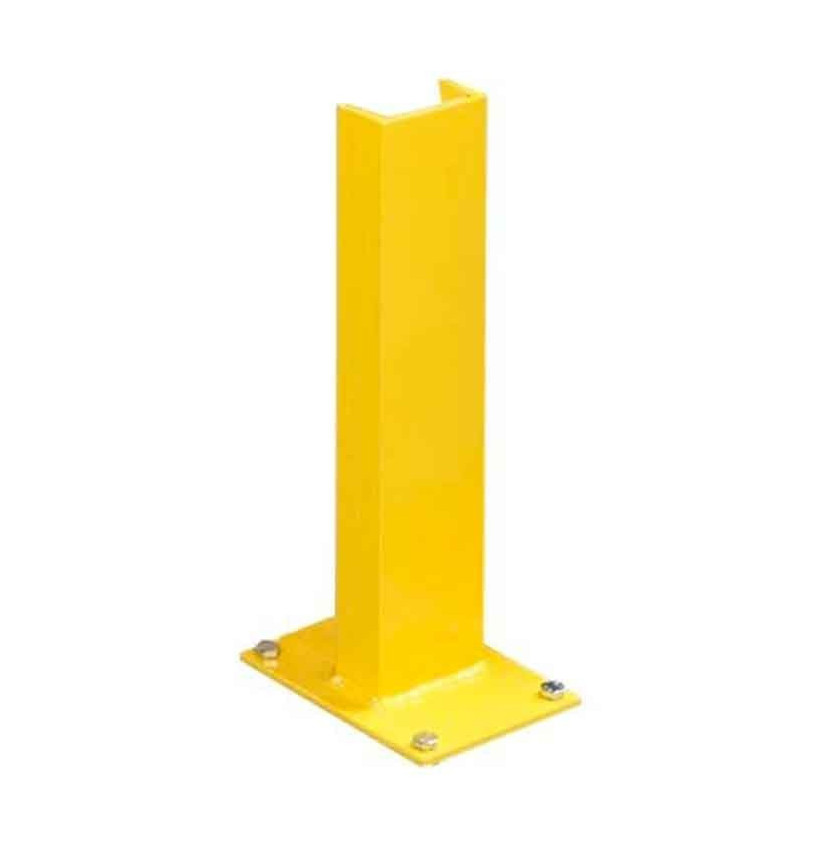

End Beam Holder for Pallet Rack Protection System

Yellow Steel Timber Beam Support for Rack Protection

The IDEQUIP end-of-aisle timber beam support is a simple, robust and cost-effective solution designed to protect industrial racking systems and high-risk storage areas from impact damage. Engineered to hold a wooden beam (not included), it creates a shock-absorbing physical barrier capable of reducing damage caused by forklifts, pallet trucks and other handling equipment.

Manufactured from high-strength painted steel, this heavy-duty bracket is intended for intensive use in warehouses, workshops and logistics platforms. Its reinforced structure ensures excellent rigidity and long-term durability, even in environments with constant vehicle traffic. The high-visibility yellow finish enhances hazard marking and improves collision prevention in sensitive zones.

Installed at the end of a rack aisle, it acts as an industrial buffer system. The wooden beam absorbs part of the impact energy, significantly reducing the risk of upright deformation and limiting costly structural repairs.

Floor-mounted by bolting, the support provides secure anchoring and optimal stability when installed on a concrete slab or suitable surface.

Technical specifications

Type: Timber beam support for rack end protection

Base plate depth: 175 mm

Width between supports: 140 mm

Total height: 460 mm

Material: High-strength painted steel

Colour: Safety yellow

Timber beam: Not included

Fixing: Floor-bolted installation (fixings not included)

Application: Warehouses, workshops, logistics areas

Ideal applications

This timber support system is particularly suited to logistics warehouses, order picking zones, industrial workshops and high-traffic storage facilities. It is compatible with both heavy-duty pallet racking and medium-duty shelving systems requiring reinforced end-of-aisle protection.

FAQ – Timber beam rack protection support

Is the wooden beam included?

No, the timber beam must be supplied separately to allow selection of the appropriate length and section for your specific requirements.

What is the exact height of the support?

The total height is 460 mm.

How is it installed?

It is floor-mounted using anchor bolts. Anchors should be selected according to the floor type, with concrete slabs recommended.

Is it suitable for intensive warehouse use?

Yes, it is manufactured from high-strength steel to withstand repeated impacts from industrial handling equipment.

Can it be installed on any type of floor?

It can be installed on any surface that allows secure mechanical anchoring, ideally reinforced concrete flooring.
