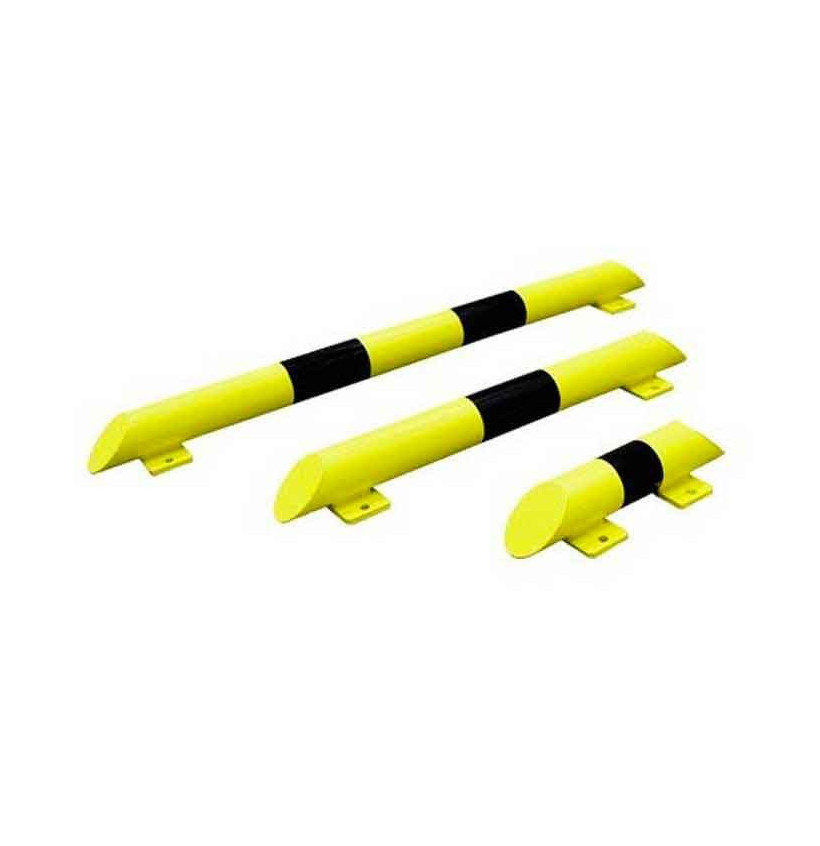

Ø76 mm Steel Safety Guardrail Stop

Steel Protection Rail / Safety Barrier for Warehouses and Industrial Areas

In warehouses and logistics environments, impact prevention is a critical safety concern. Circulation areas used by forklifts, pallet trucks and stackers are particularly exposed to accidental collisions. The steel protection rail provides a simple and highly effective solution for securing these high-risk zones over the long term.

Manufactured from high-strength steel with a thickness of 3 mm, this industrial wheel stop acts as a solid physical barrier against both lateral and frontal impacts. It effectively protects rack uprights, column bases, walls, sectional doors and any equipment positioned along traffic routes. The 76 mm diameter tube offers excellent impact resistance while maintaining a compact footprint that does not interfere with logistics flow.

Each rail is equipped with two heavy-duty base plates, each pre-drilled with four 12 mm holes, ensuring secure and long-lasting anchoring to a concrete slab. The high-toughness yellow and black epoxy coating enhances warehouse visibility while improving resistance to mechanical stress, humidity and daily wear.

Available in several lengths, this steel protection barrier adapts easily to your installation layout, whether for localized impact protection or extended linear safety coverage.

Technical Specifications

Tube diameter: 76 mm

Steel thickness: 3 mm

Available lengths: 400 mm, 800 mm, 1200 mm, 1800 mm

Fixing system: 2 steel base plates with 4 holes Ø12 mm each

Concrete anchors: Not included (fixing kits available separately)

Finish: Yellow and black impact-resistant epoxy coating

Application: Indoor use (suitable for covered outdoor areas)

Recommended Applications

This industrial safety rail is particularly suitable for logistics warehouses, manufacturing plants, order picking zones, loading docks, industrial parking areas and storage facilities equipped with pallet racking systems. It also serves as an effective visual deterrent for machinery operators in high-traffic environments.

Installation

Installation is straightforward. Position the rail in front of the area to be protected and secure it to the ground using mechanical anchors suitable for the surface (concrete or asphalt). For optimal performance, reinforced Ø12 mm fixings compatible with the base plates are recommended.

FAQ – Steel Protection Rail Ø76 mm

Can this rail protect pallet racking systems?

Yes, it is specifically designed to protect rack uprights and reduce deformation caused by impact from handling equipment.

Is it suitable for heavy-duty industrial use?

Yes, the 3 mm thick steel construction is intended for high-traffic industrial environments.

Can it be installed outdoors?

It is ideal for indoor or covered outdoor use. For permanent outdoor exposure, a galvanized version may be recommended.

Are fixings included?

No, concrete anchors must be ordered separately to match the type of flooring.

Which length should I choose?

The appropriate length depends on the area to be protected. Longer sections are recommended for continuous rack lines or full wall protection.
