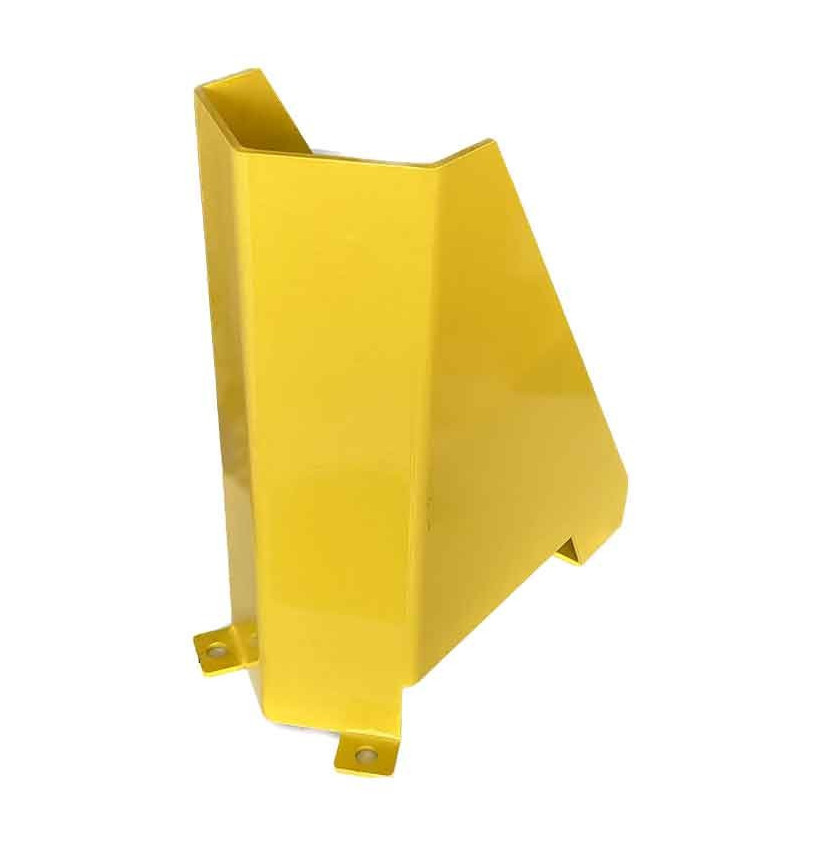

Pallet Racking Upright Protector

Pallet rack upright protector – 5 mm steel – 4-point anchoring

The pallet rack upright protector is an essential safety component designed to provide long-term protection for warehouse storage installations. In high-traffic logistics environments where forklifts, pallet trucks and stackers operate continuously, rack uprights are particularly exposed to accidental impacts. This heavy-duty rack guard acts as a structural impact barrier, safeguarding racking systems and ensuring operational safety.

Manufactured from 5 mm thick high-strength steel, this protector forms a robust physical shield around the base of the rack upright. In the event of a collision, it absorbs and redistributes impact energy, protecting the load-bearing structure from deformation. This helps prevent upright damage, structural weakening, potential collapse risks and costly repairs. It also supports warehouse compliance and safety standards by reducing hazards for personnel and stored goods.

With a height of 400 mm, the protector effectively shields the most vulnerable lower section of the rack frame. Its compact design allows installation directly in front of the upright foot without obstructing traffic flow or pallet access. The four Ø14 mm anchoring points ensure secure fixing to a concrete floor, providing excellent stability even in areas exposed to repeated impacts.

This rack protection guard is particularly recommended for logistics platforms, distribution centres, industrial warehouses and high-density storage areas where structural protection is critical for safety and operational continuity.

Technical specifications

Height: 400 mm

Length: 320 mm

Width: 180 mm

Steel thickness: 5 mm

Fixing: 4 anchoring points Ø14 mm (fixings sold separately)

Installation: Floor-mounted, positioned in front of the rack upright base

FAQ – Pallet rack upright protector

What is the purpose of a rack protector?

It protects rack uprights from impacts caused by handling equipment and prevents structural deformation that could compromise rack stability.

Is it compatible with all pallet racks?

It is compatible with most standard pallet racking systems. It is recommended to verify upright dimensions and available floor space before installation.

Is installation complicated?

No. It is secured to the floor using four concrete anchors and does not require modification of the rack structure.

Are fixings included?

No. Suitable Ø14 mm concrete anchors must be selected according to the floor type and ordered separately.

Is it mandatory in a warehouse?

It is not always mandatory, but it is strongly recommended in high-traffic areas to improve safety and reduce accident risks.
