Hot-Dip Galvanized Steel Protection Bollard In-Ground Installation

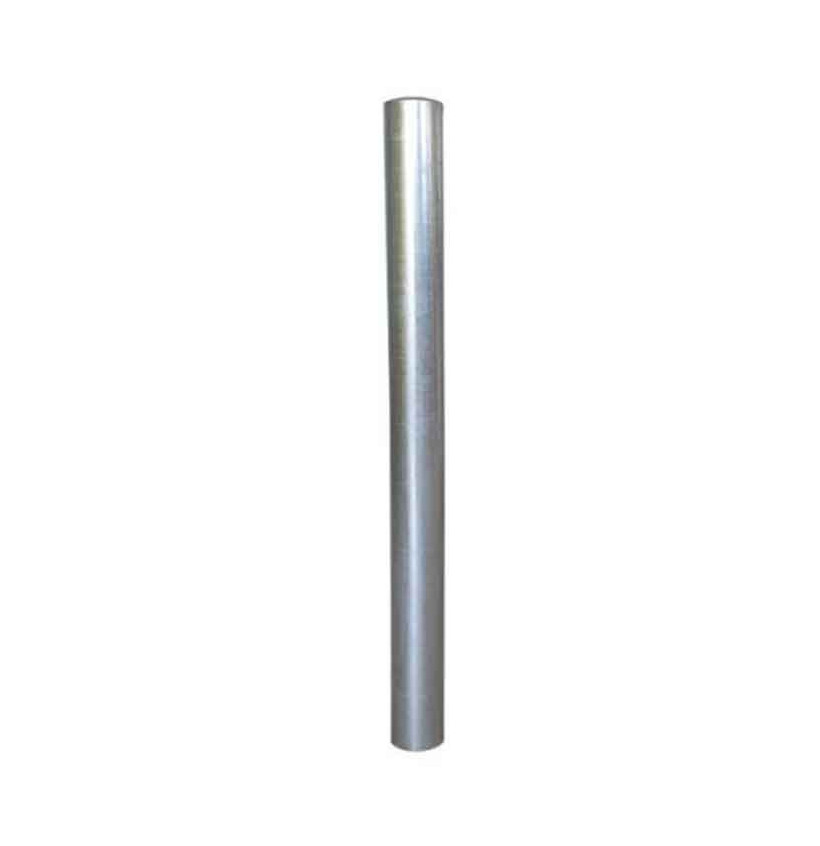

Galvanised steel protection bollard – Root-fixed – Ø90 / Ø100 mm

The Viso galvanised steel root-fixed protection bollard is a robust and cost-effective solution for securing access points, buildings and sensitive areas over the long term. Designed to be directly embedded into concrete, it provides a permanent and highly resistant installation, ideal for urban, industrial and private environments.

Available in Ø90 mm or Ø100 mm, with a steel thickness of 2.5 mm, this bollard offers excellent resistance to accidental impacts from cars and light commercial vehicles. Its hot-dip galvanised finish ensures long-term corrosion protection, even in outdoor or humid conditions.

Effective protection and visible deterrence

This bollard is particularly suitable for:

• Preventing unauthorised parking

• Protecting façades and shopfronts

• Securing technical access points or restricted areas

• Delimiting pedestrian zones

• Reinforcing protection of sensitive buildings

With a total height of 1000 mm (800 mm above ground), it provides strong visibility and immediate deterrent effect.

Root-fixed installation for maximum security

Direct embedding into concrete makes the bollard permanently fixed once installed. This installation method significantly reduces the risk of removal, vandalism or structural loosening, making it particularly suitable for public authorities and long-term infrastructure protection.

Technical specifications

• Material: Hot-dip galvanised steel

• Total height: 1000 mm

• Above-ground height: 800 mm

• Diameter: Ø90 mm or Ø100 mm

• Steel thickness: 2.5 mm

• Installation: Root-fixed in concrete footing

• Application: Primarily outdoor use

Key advantages

🛡️ Permanent, tamper-resistant installation

🌧️ Corrosion-resistant galvanised finish

🚧 Effective vehicle impact deterrence

🏙️ Suitable for public, industrial and private spaces

💰 Cost-effective long-term protection solution

FAQ – Galvanised root-fixed bollard Ø90 / Ø100 mm

What is the difference between Ø90 mm and Ø100 mm?

The Ø100 mm version provides slightly greater mechanical resistance and enhanced visual deterrence.

Is it suitable for outdoor environments?

Yes, hot-dip galvanisation ensures strong protection against rust and weather exposure.

Can it be removed after installation?

No, once embedded in concrete, it becomes permanently fixed.

Is it suitable for protecting building entrances?

Yes, it is ideal for securing entrances, car parks and restricted zones.

Is it suitable for public authorities?

Yes, it is commonly installed in public roads, municipal car parks and pedestrian areas.
